实验环境：

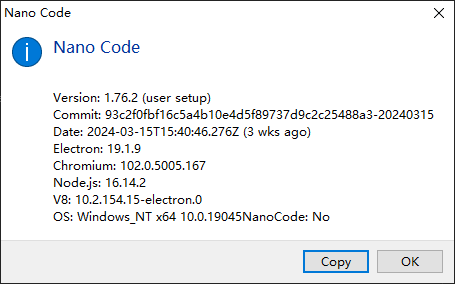

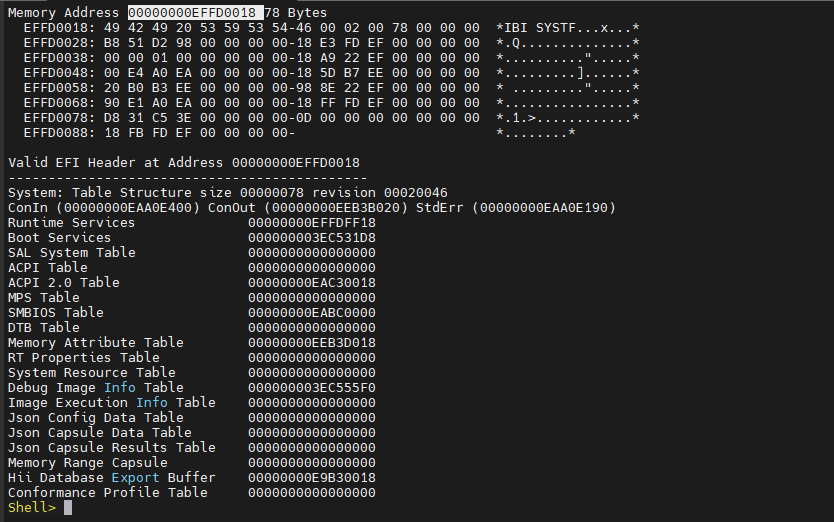

UEFI Shell命令行执行dmem命令的输出：
EFFD0018到底指向什么？

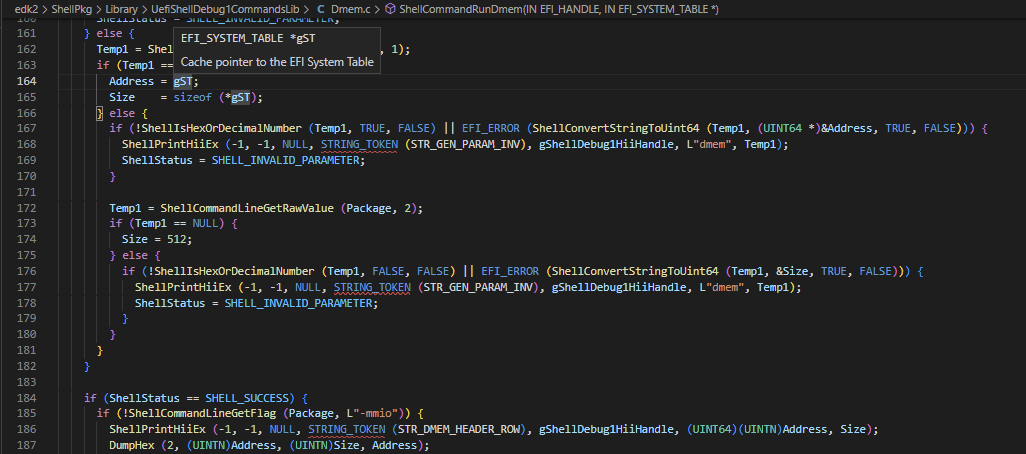

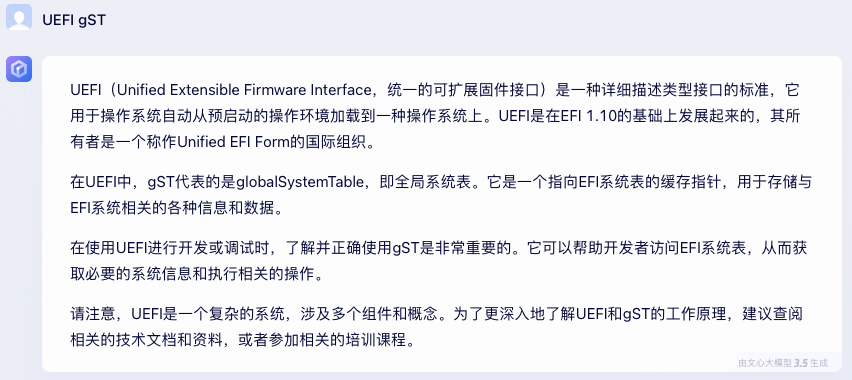

演示如何在NDB中观察鲜活的gST，这个极为重要的全局变量：
x Shell!gST
00000000`e9d68cc0 Shell!gST
dq 0`e9d68cc0 l1
00000000`e9d68cc0 00000000`effd0018
dt -r EFI_SYSTEM_TABLE 0`effd0018
+0x000 Hdr :
+0x000 Signature : 0x54535953`20494249
+0x008 Revision : 0x20046
+0x00c HeaderSize : 0x78
+0x010 CRC32 : 0x98d251b8
+0x014 Reserved : 0
+0x018 FirmwareVendor : (null)
+0x020 FirmwareRevision : 0x10000
+0x028 ConsoleInHandle : 0x00000000`ef22a918
+0x030 ConIn : (null)
+0x038 ConsoleOutHandle : 0x00000000`eeb75d18
+0x040 ConOut : (null)
+0x048 StandardErrorHandle : 0x00000000`ef228e98
+0x050 StdErr : (null)
+0x058 RuntimeServices : (null)
+0x060 BootServices : (null)
+0x068 NumberOfTableEntries : 0xd
+0x070 ConfigurationTable : (null)
?? sizeof(EFI_SYSTEM_TABLE)
unsigned int64 0x78
dqs 0`effd0018 l78/8
00000000`effd0018 54535953`20494249
00000000`effd0020 00000078`00020046
00000000`effd0028 00000000`98d251b8
00000000`effd0030 00000000`effde318
00000000`effd0038 00000000`00010000
00000000`effd0040 00000000`ef22a918
00000000`effd0048 00000000`eaa0e400 ConSplitterDxe!mConIn+0x10
00000000`effd0050 00000000`eeb75d18
00000000`effd0058 00000000`eeb3b020
00000000`effd0060 00000000`ef228e98
00000000`effd0068 00000000`eaa0e190 ConSplitterDxe!mStdErr+0x10
00000000`effd0070 00000000`effdff18
00000000`effd0078 00000000`3ec531d8 DxeCore!mBootServices
00000000`effd0080 00000000`0000000d
00000000`effd0088 00000000`effdfb18
dt EFI_CONFIGURATION_TABLE
+0x000 VendorGuid :
+0x010 VendorTable : Ptr64 Void
dt EFI_CONFIGURATION_TABLE 0`effdfb18
+0x000 VendorGuid :
+0x010 VendorTable : 0x00000000`3ec546f8
db 0`3ec546f8
00000000`3ec546f8 01 00 00 00 00 00 00 00-00 36 6e 01 00 00 00 00 .........6n.....
00000000`3ec54708 00 00 00 00 00 00 00 00-ff ff ff ff ff ff ff ff ................
00000000`3ec54718 d8 31 c5 3e 00 00 00 00-10 00 00 00 00 00 00 00 .1.>............
00000000`3ec54728 18 f7 df ef 00 00 00 00-18 f6 df ef 00 00 00 00 ................
00000000`3ec54738 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................
00000000`3ec54748 00 00 00 00 00 00 00 00-50 47 c5 3e 00 00 00 00 ........PG.>....
00000000`3ec54758 50 47 c5 3e 00 00 00 00-60 47 c5 3e 00 00 00 00 PG.>....`G.>....
00000000`3ec54768 60 47 c5 3e 00 00 00 00-70 47 c5 3e 00 00 00 00 `G.>....pG.>....
dq 0`3ec546f8
00000000`3ec546f8 00000000`00000001 00000000`016e3600
00000000`3ec54708 00000000`00000000 ffffffff`ffffffff
00000000`3ec54718 00000000`3ec531d8 00000000`00000010
00000000`3ec54728 00000000`efdff718 00000000`efdff618
00000000`3ec54738 00000000`00000000 00000000`00000000
00000000`3ec54748 00000000`00000000 00000000`3ec54750
00000000`3ec54758 00000000`3ec54750 00000000`3ec54760
00000000`3ec54768 00000000`3ec54760 00000000`3ec54770
dt -r EFI_RUNTIME_SERVICES 0`effdff18
+0x000 Hdr :
+0x000 Signature : 0x56524553`544e5552
+0x008 Revision : 0x20046
+0x00c HeaderSize : 0x88
+0x010 CRC32 : 0x1925f001
+0x014 Reserved : 0
+0x018 GetTime : (null)
+0x020 SetTime : (null)
+0x028 GetWakeupTime : (null)
+0x030 SetWakeupTime : (null)
+0x038 SetVirtualAddressMap : (null)
+0x040 ConvertPointer : (null)
+0x048 GetVariable : (null)
+0x050 GetNextVariableName : (null)
+0x058 SetVariable : (null)
+0x060 GetNextHighMonotonicCount : (null)
+0x068 ResetSystem : (null)
+0x070 UpdateCapsule : (null)
+0x078 QueryCapsuleCapabilities : (null)
+0x080 QueryVariableInfo : (null)
dqs 0`effdff18 l88/8
00000000`effdff18 56524553`544e5552
00000000`effdff20 00000088`00020046
00000000`effdff28 00000000`1925f001
00000000`effdff30 00000000`eaa21740 RealTimeClock!gST+0xffffffff`ffff1678
00000000`effdff38 00000000`eaa21514 RealTimeClock!gST+0xffffffff`ffff144c
00000000`effdff40 00000000`eaa20024 RealTimeClock!gST+0xffffffff`fffeff5c
00000000`effdff48 00000000`eaa20060 RealTimeClock!gST+0xffffffff`fffeff98
00000000`effdff50 00000000`eaf818d4 RuntimeDxe!gST+0xffffffff`ffff17a4
00000000`effdff58 00000000`eaf80008 RuntimeDxe!gST+0xffffffff`fffefed8
00000000`effdff60 00000000`eacc509c VariableRuntimeDxe!gST+0xffffffff`ffff4be4
00000000`effdff68 00000000`eacc1894 VariableRuntimeDxe!gST+0xffffffff`ffff13dc
00000000`effdff70 00000000`eacc723c VariableRuntimeDxe!gST+0xffffffff`ffff6d84
00000000`effdff78 00000000`eaef01d0 EmbeddedMonotonicCounter!gST+0xffffffff`ffff0188
00000000`effdff80 00000000`eac01700 Reset!gST+0xffffffff`ffff1698
00000000`effdff88 00000000`eaac1434 CapsuleRuntimeDxe!gST+0xffffffff`ffff13bc
00000000`effdff90 00000000`eaac1334 CapsuleRuntimeDxe!gST+0xffffffff`ffff12bc
00000000`effdff98 00000000`eacc11c4 VariableRuntimeDxe!gST+0xffffffff`ffff0d0c结合源代码：
重要数据结构（所在位置）：
///

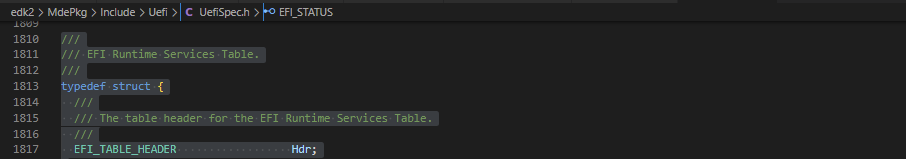

/// EFI Runtime Services Table.
///
typedef struct {
///
/// The table header for the EFI Runtime Services Table.
///
EFI_TABLE_HEADER Hdr;
//
// Time Services
//
EFI_GET_TIME GetTime;
EFI_SET_TIME SetTime;
EFI_GET_WAKEUP_TIME GetWakeupTime;
EFI_SET_WAKEUP_TIME SetWakeupTime;
//
// Virtual Memory Services
//
EFI_SET_VIRTUAL_ADDRESS_MAP SetVirtualAddressMap;
EFI_CONVERT_POINTER ConvertPointer;
//
// Variable Services
//
EFI_GET_VARIABLE GetVariable;
EFI_GET_NEXT_VARIABLE_NAME GetNextVariableName;
EFI_SET_VARIABLE SetVariable;
//
// Miscellaneous Services
//
EFI_GET_NEXT_HIGH_MONO_COUNT GetNextHighMonotonicCount;
EFI_RESET_SYSTEM ResetSystem;
//
// UEFI 2.0 Capsule Services
//
EFI_UPDATE_CAPSULE UpdateCapsule;
EFI_QUERY_CAPSULE_CAPABILITIES QueryCapsuleCapabilities;
//
// Miscellaneous UEFI 2.0 Service
//
EFI_QUERY_VARIABLE_INFO QueryVariableInfo;
} EFI_RUNTIME_SERVICES;
#define EFI_BOOT_SERVICES_SIGNATURE SIGNATURE_64 ('B','O','O','T','S','E','R','V')
#define EFI_BOOT_SERVICES_REVISION EFI_SPECIFICATION_VERSION
///
/// EFI Boot Services Table.
///
typedef struct {
///
/// The table header for the EFI Boot Services Table.
///
EFI_TABLE_HEADER Hdr;
//
// Task Priority Services
//
EFI_RAISE_TPL RaiseTPL;
EFI_RESTORE_TPL RestoreTPL;
//
// Memory Services
//
EFI_ALLOCATE_PAGES AllocatePages;
EFI_FREE_PAGES FreePages;
EFI_GET_MEMORY_MAP GetMemoryMap;
EFI_ALLOCATE_POOL AllocatePool;
EFI_FREE_POOL FreePool;
//
// Event & Timer Services
//
EFI_CREATE_EVENT CreateEvent;
EFI_SET_TIMER SetTimer;
EFI_WAIT_FOR_EVENT WaitForEvent;
EFI_SIGNAL_EVENT SignalEvent;
EFI_CLOSE_EVENT CloseEvent;
EFI_CHECK_EVENT CheckEvent;
//
// Protocol Handler Services
//
EFI_INSTALL_PROTOCOL_INTERFACE InstallProtocolInterface;
EFI_REINSTALL_PROTOCOL_INTERFACE ReinstallProtocolInterface;
EFI_UNINSTALL_PROTOCOL_INTERFACE UninstallProtocolInterface;
EFI_HANDLE_PROTOCOL HandleProtocol;
VOID *Reserved;
EFI_REGISTER_PROTOCOL_NOTIFY RegisterProtocolNotify;
EFI_LOCATE_HANDLE LocateHandle;
EFI_LOCATE_DEVICE_PATH LocateDevicePath;
EFI_INSTALL_CONFIGURATION_TABLE InstallConfigurationTable;
//
// Image Services
//
EFI_IMAGE_LOAD LoadImage;
EFI_IMAGE_START StartImage;
EFI_EXIT Exit;
EFI_IMAGE_UNLOAD UnloadImage;
EFI_EXIT_BOOT_SERVICES ExitBootServices;
//
// Miscellaneous Services
//
EFI_GET_NEXT_MONOTONIC_COUNT GetNextMonotonicCount;
EFI_STALL Stall;
EFI_SET_WATCHDOG_TIMER SetWatchdogTimer;
//
// DriverSupport Services
//
EFI_CONNECT_CONTROLLER ConnectController;
EFI_DISCONNECT_CONTROLLER DisconnectController;
//
// Open and Close Protocol Services
//
EFI_OPEN_PROTOCOL OpenProtocol;
EFI_CLOSE_PROTOCOL CloseProtocol;
EFI_OPEN_PROTOCOL_INFORMATION OpenProtocolInformation;
//
// Library Services
//
EFI_PROTOCOLS_PER_HANDLE ProtocolsPerHandle;
EFI_LOCATE_HANDLE_BUFFER LocateHandleBuffer;
EFI_LOCATE_PROTOCOL LocateProtocol;
EFI_INSTALL_MULTIPLE_PROTOCOL_INTERFACES InstallMultipleProtocolInterfaces;
EFI_UNINSTALL_MULTIPLE_PROTOCOL_INTERFACES UninstallMultipleProtocolInterfaces;
//
// 32-bit CRC Services
//
EFI_CALCULATE_CRC32 CalculateCrc32;
//
// Miscellaneous Services
//
EFI_COPY_MEM CopyMem;
EFI_SET_MEM SetMem;
EFI_CREATE_EVENT_EX CreateEventEx;
} EFI_BOOT_SERVICES;
///
/// Contains a set of GUID/pointer pairs comprised of the ConfigurationTable field in the
/// EFI System Table.
///
typedef struct {
///
/// The 128-bit GUID value that uniquely identifies the system configuration table.
///
EFI_GUID VendorGuid;
///
/// A pointer to the table associated with VendorGuid.
///
VOID *VendorTable;
} EFI_CONFIGURATION_TABLE;
///
/// EFI System Table
///
typedef struct {
///
/// The table header for the EFI System Table.
///
EFI_TABLE_HEADER Hdr;
///
/// A pointer to a null terminated string that identifies the vendor
/// that produces the system firmware for the platform.
///
CHAR16 *FirmwareVendor;
///
/// A firmware vendor specific value that identifies the revision
/// of the system firmware for the platform.
///
UINT32 FirmwareRevision;
///
/// The handle for the active console input device. This handle must support
/// EFI_SIMPLE_TEXT_INPUT_PROTOCOL and EFI_SIMPLE_TEXT_INPUT_EX_PROTOCOL.
///
EFI_HANDLE ConsoleInHandle;
///
/// A pointer to the EFI_SIMPLE_TEXT_INPUT_PROTOCOL interface that is
/// associated with ConsoleInHandle.
///
EFI_SIMPLE_TEXT_INPUT_PROTOCOL *ConIn;
///
/// The handle for the active console output device.
///
EFI_HANDLE ConsoleOutHandle;
///
/// A pointer to the EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL interface
/// that is associated with ConsoleOutHandle.
///
EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL *ConOut;
///
/// The handle for the active standard error console device.
/// This handle must support the EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL.
///
EFI_HANDLE StandardErrorHandle;
///
/// A pointer to the EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL interface
/// that is associated with StandardErrorHandle.
///
EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL *StdErr;
///
/// A pointer to the EFI Runtime Services Table.
///
EFI_RUNTIME_SERVICES *RuntimeServices;
///
/// A pointer to the EFI Boot Services Table.
///
EFI_BOOT_SERVICES *BootServices;
///
/// The number of system configuration tables in the buffer ConfigurationTable.
///
UINTN NumberOfTableEntries;
///
/// A pointer to the system configuration tables.
/// The number of entries in the table is NumberOfTableEntries.
///
EFI_CONFIGURATION_TABLE *ConfigurationTable;
} EFI_SYSTEM_TABLE;
/**
This is the declaration of an EFI image entry point. This entry point is
the same for UEFI Applications, UEFI OS Loaders, and UEFI Drivers including
both device drivers and bus drivers.
@param[in] ImageHandle The firmware allocated handle for the UEFI image.
@param[in] SystemTable A pointer to the EFI System Table.
@retval EFI_SUCCESS The operation completed successfully.
@retval Others An unexpected error occurred.
**/
typedef
EFI_STATUS
(EFIAPI *EFI_IMAGE_ENTRY_POINT)(
IN EFI_HANDLE ImageHandle,
IN EFI_SYSTEM_TABLE *SystemTable

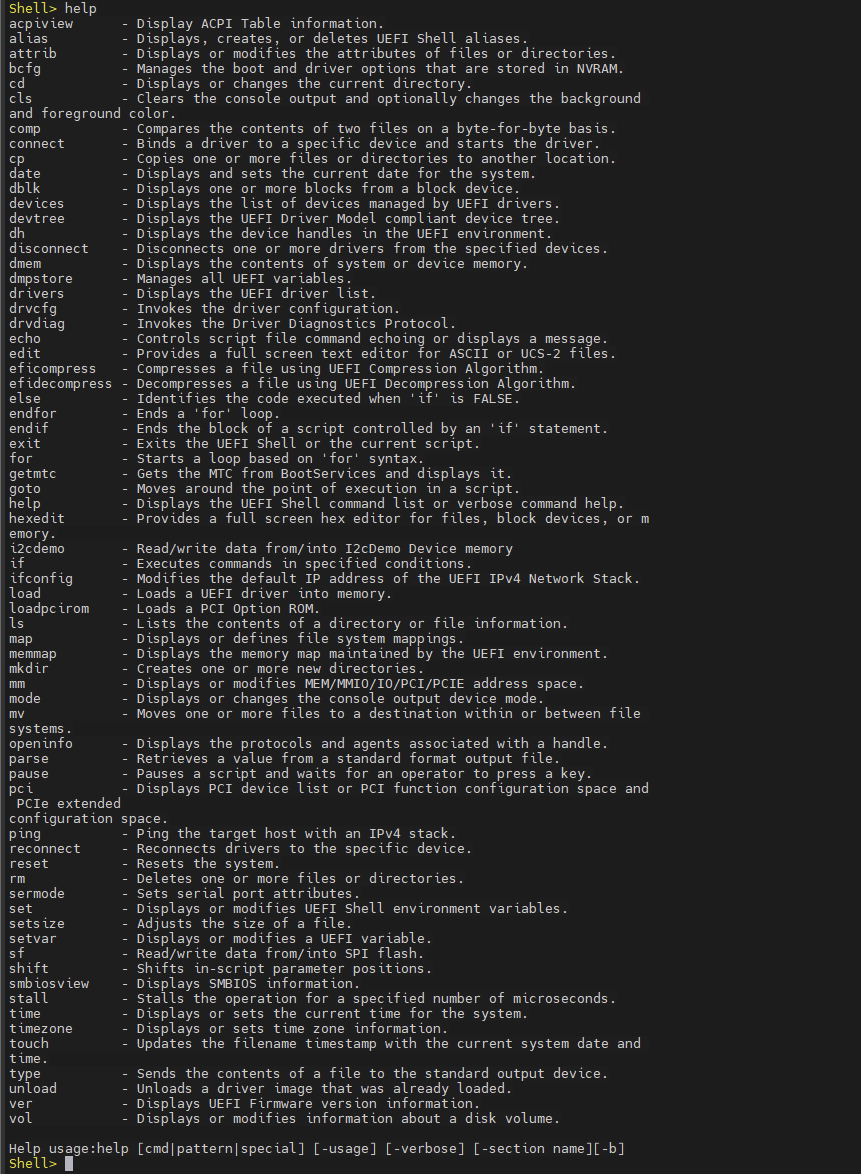

);用NDB将下面的UEFI的Shell命令跟踪观察学习一遍，对于熟悉UEFI将是有帮助的：
